EC High Efficiency Energy-Saving Fan

In the new era of ESG, energy-saving and high-efficiency fans are a must in equipment, and PWM speed control and alarm functions can be customized.

High Performance AC Cooling Fan

High temperature resistant fans are available in specifications from 70°C to 100°C for you to choose and use, so that you no longer have to worry about the internal damage and shutdown of the fan caused by the high temperature of the device.

Anti-salt spray fan

Special anti-corrosion steel ball bearings allow your fan to continue to operate in environments prone to corrosion such as the seaside for a long time.

ATEX explosion-proof fan

Combustible gas is definitely the most worrying point in industrial equipment, so it is necessary to choose an ATEX explosion-proof fan with international certification, which can not only exhaust air and heat, but also prevent the risk of equipment explosion.

Special customized service

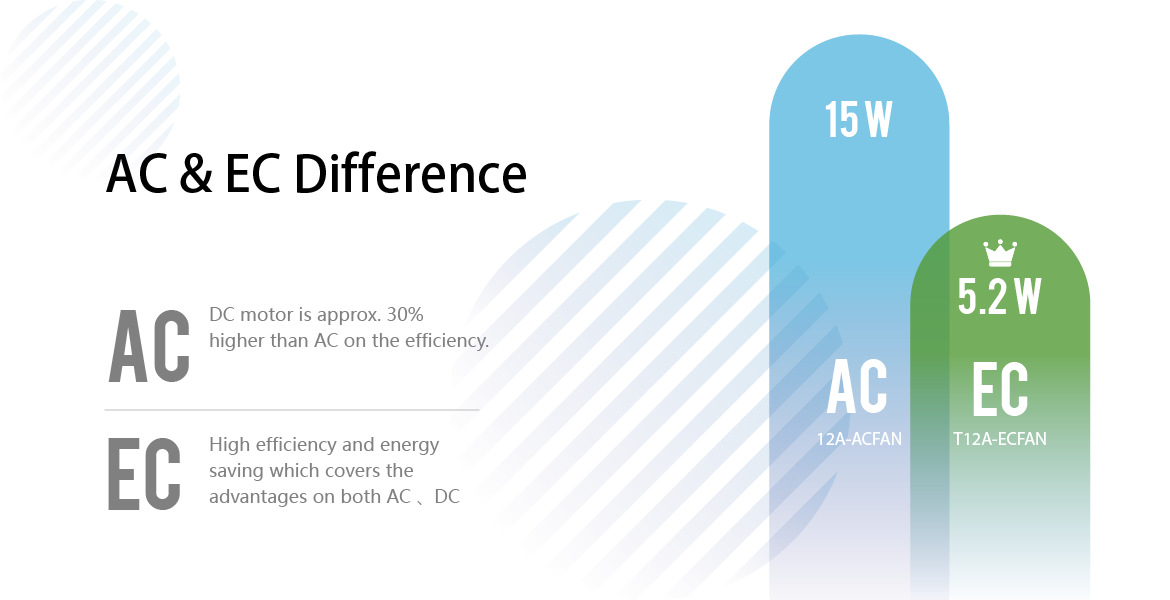

AC & EC Difference
AC通常DC馬達比AC馬達效率高約30%，EC同時具備AC、DC優點,達到高效與節能
Difference AC FAN EC FAN
MOTOR ROTATION The AC motor is inducted by the AC power input voltage and generates the magnetic field rotation through the induced current on the rotor. However, the AC motor speed is fixed due to the power frequency, the maximum motor speed is only 3600 rpm. Also, the AC motor is lower in performance than the DC motor. A brushless DC motor controlled by an electronic drive board. There is permanent magnet in the rotor and a set of copper coils in the stator of the EC motor. And the motor keeps to rotate through the switches the phase in the copper coil which controlled by the circuit board.
EFFICIENCY DC motor is approx. 30% higher than AC on the efficiency. High efficiency and energy saving which covers the advantages on both AC 、DC
SPECIFICATION Motor started by AC power.
Higher power consumption than EC fan
QDN, Thermal tachometer function 		With IP55、IP68 and ATEX based on customer’s demand.
QDN, Thermal tachometer and PWM adds on

Special customized service

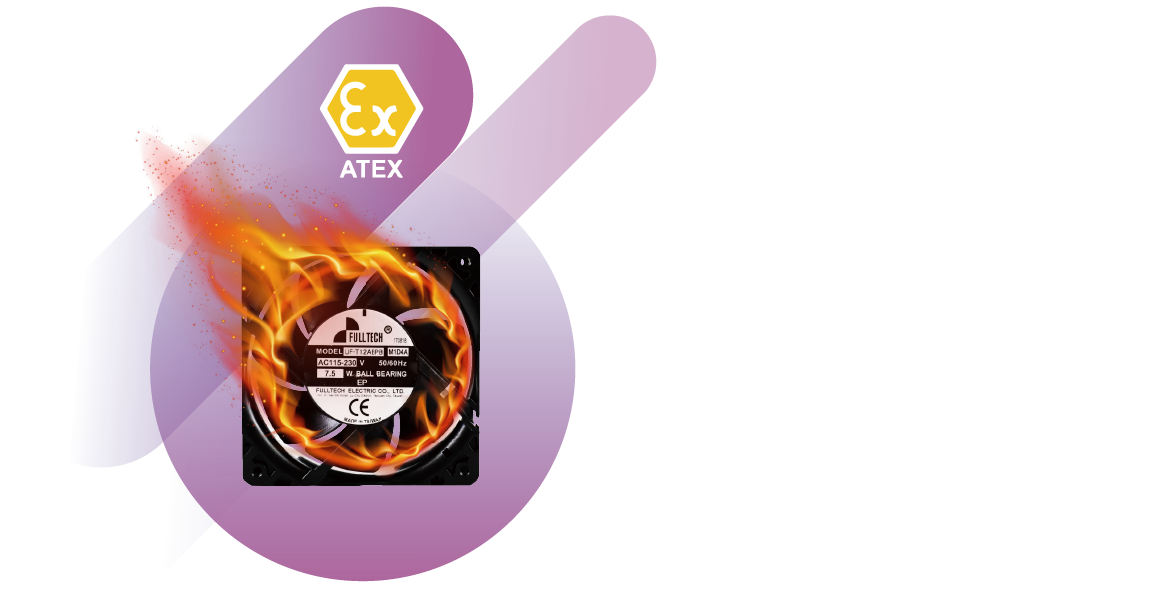

Anti-Explosion EC Fan

Fulltech’s technology on specific motor sealing technology to avoid the possible spark.

防爆风扇可达到P68 防水防尘等级用在有可燃气体及易燃物之设备内如冷柜、冰箱。
ATEX model Description Size Safety Approval
T60B BPB0AM1D4AN Axial fan, 230Vac, ball bearing 60x60x25mm, plastic impeller UL.CUL.TUV.ATEX
T92A BPB0AM1D4AN Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T12A BPB0AM1D4AN Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE.ATEX
T15P BPB0AM1D4AN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.ATEX
T25G BPB0AL1D8AN Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.ATEX
UFT200BPB23H1D4AN Axial fan, 230Vac, ball bearing Ø250x76.1mm, plastic impeller UL.CUL.TUV.ATEX
UFT200BMB23H1D4AN Axial fan, 230Vac, ball bearing Ø250x76.1mm, metal impeller UL.CUL.TUV.ATEX

Special customized service

AC FAN Customized Model
IP55等级防水防尘风扇 可防止水气侵入影响风扇寿命,适用于户外设备或高湿度环境。例如:LED看板、充电站等户外设备、捕鱼船。
Waterproof Model Description Size Safety Approval IP Rate
92A23BWHN Axial fan, 230Vac, ball bearing 92x92x38mm, plastic impeller ETL.TUV.CE IP55
92B23BWHN Axial fan, 230Vac, ball bearing 92x92x25mm, plastic impeller UUL.CUL.TUV.CE IP55
12A23BWHN Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP55
12B23BWHN Axial fan, 230Vac, ball bearing 120x120x25mm, plastic impeller UL.CUL.TUV.CE IP55
13A23BWHN Axial fan, 230Vac, ball bearing 127x127x38mm, plastic impeller UL.CUL.TUV.CE IP55
15P23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP55
15PC23BWHN Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
15KC23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP55
15KM23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller UL.CUL.TUV.CE IP55
15KMR23BWHN Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow UL.CUL.TUV.CE IP55
17PC23BTHN Axial fan, 230Vac, ball bearing Ø172x51mm, plastic impeller, capacitor start-run UL.CUL.TUV.CE IP55
25GC23BWHN Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller
 UL.CUL.TUV.CE IP55

Special customized service

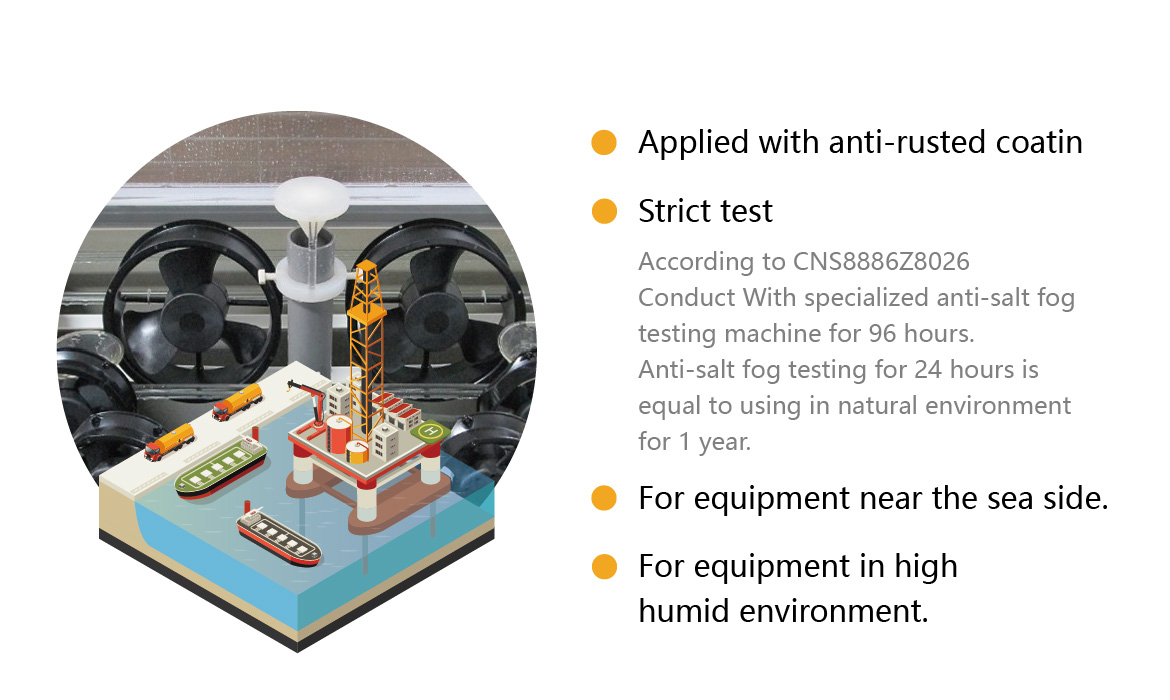

Anti Salt/Fog Fan (G) IP68 Rated
使用防锈蚀钢珠轴承，防依据CNS8886Z8026使用盐雾测试机做96小时盐雾测试，盐雾测试24小时相当自然环境1年时间，可用于海上及海边设备，可用于高湿度环境。
ANTI SALT/FOG MODEL Description Size Safety Approval IP Rate
60D23BWHG Axial fan, 230Vac, ball bearing 60x60x30mm, plastic impeller UL.CUL.TUV.CE IP68
12A23BTHG Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE IP68
13A23BWHG Axial fan, 230Vac, ball bearing 127x127x38mm, plastic impeller UL.CUL.TUV.CE IP68
15PC23BWHG Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE IP68
15KC23BWHG Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE IP68
25GC23BWHG Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE IP68

Special customized service

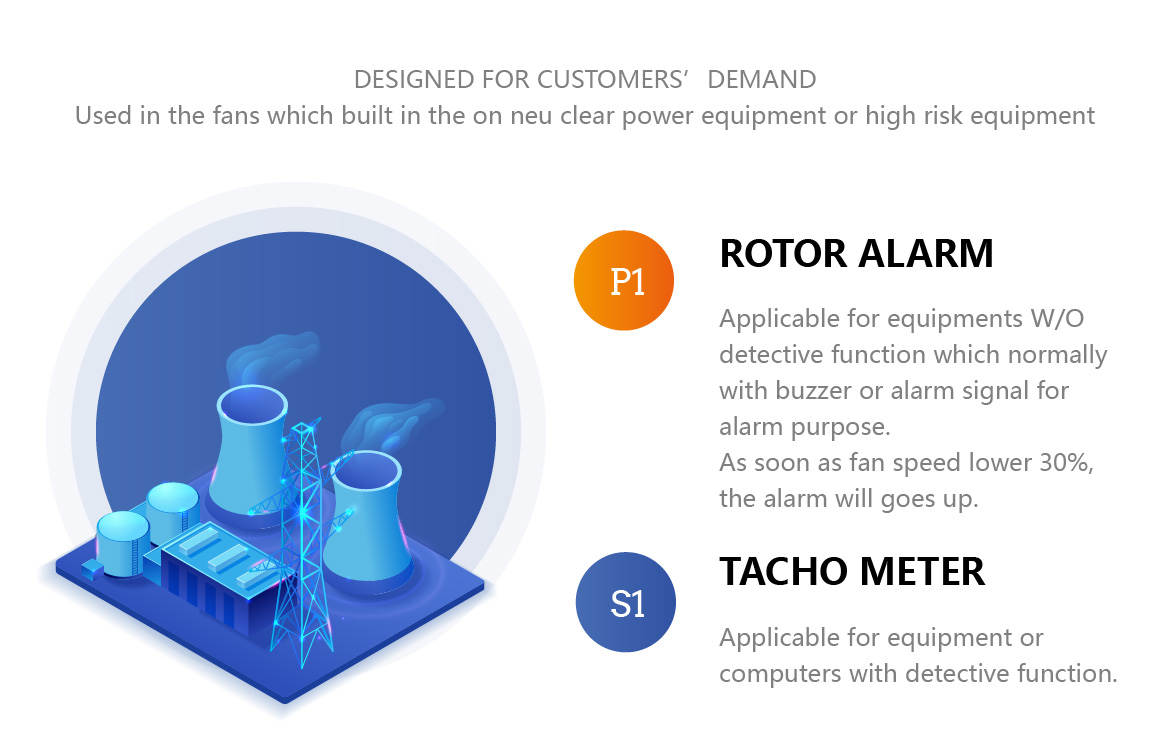

AC Fan with Signal Output
可用于核电及高风险设备的讯号输出风
Alarm Signal Description Size Safety Approval
12A23BTHP1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHP1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDP1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDP1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE
25GCB23BWHP1 Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE



Alarm Signal Description Size Safety Approval
12A23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
12AM23BTHS1 Axial fan, 230Vac, ball bearing 120x120x38mm, plastic impeller UL.CUL.TUV.CE
15AC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x38mm, plastic impeller UL.CUL.TUV.CE
15PC23BWHS1 Axial fan, 230Vac, ball bearing 172x150x51mm, plastic impeller UL.CUL.TUV.CE
15KC23BTHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
15KM23BWHS1 Axial fan, 230Vac, ball bearing 172x150x55mm, plastic impeller UL.CUL.TUV.CE
16FC23BTHDS1 Axial fan, 230Vac, ball bearing 160x160x62mm, plastic impeller UL.CUL.TUV.CE
18JC23BTHDS1 Axial fan, 230Vac, ball bearing 180x180x90mm, plastic impeller UL.CUL.TUV.CE
25GC23BTHS1 Axial fan, 230Vac, ball bearing Ø254x89mm, plastic impeller UL.CUL.TUV.CE

Special customized service

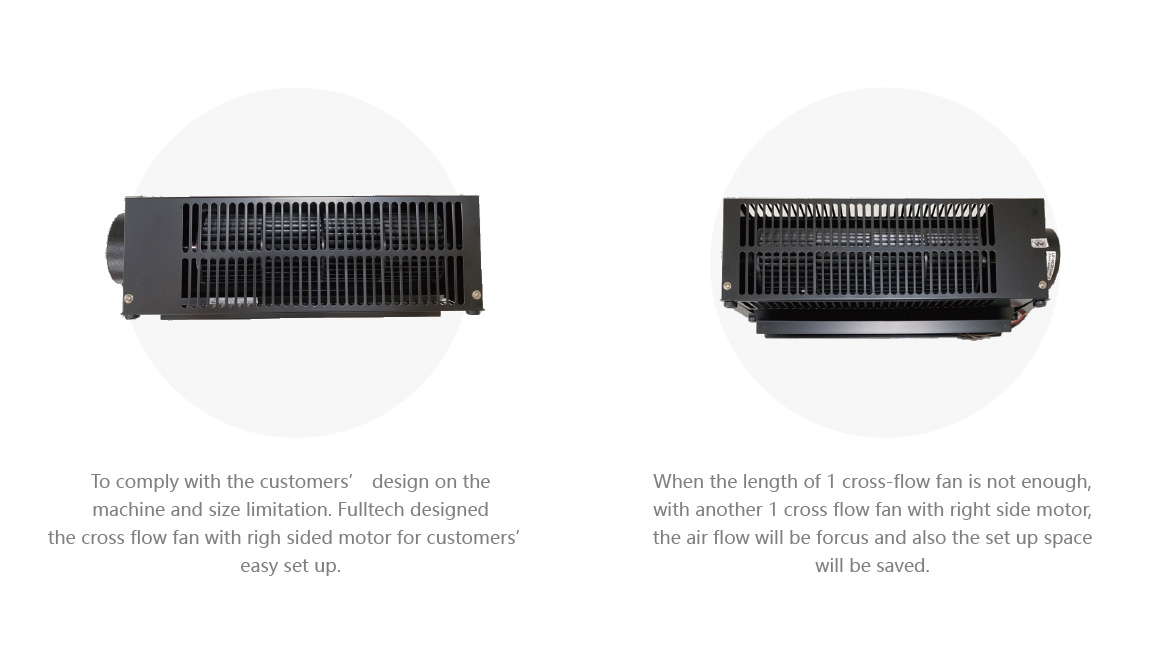

Cross Flow fan with right side motor
Right Side Motor Description Size Safety Approval
6017SBA12MR Cross flow fan, 120Vac, ball bearing 266x100x90mm, aluminum roller CE
9029CBP23HR Cross flow fan, 230Vac, ball bearing 420x150x130mm, plastic roller CE
9060CBP23HR Cross flow fan, 230Vac, ball bearing 740x150x130mm, plastic roller CE

Special customized service

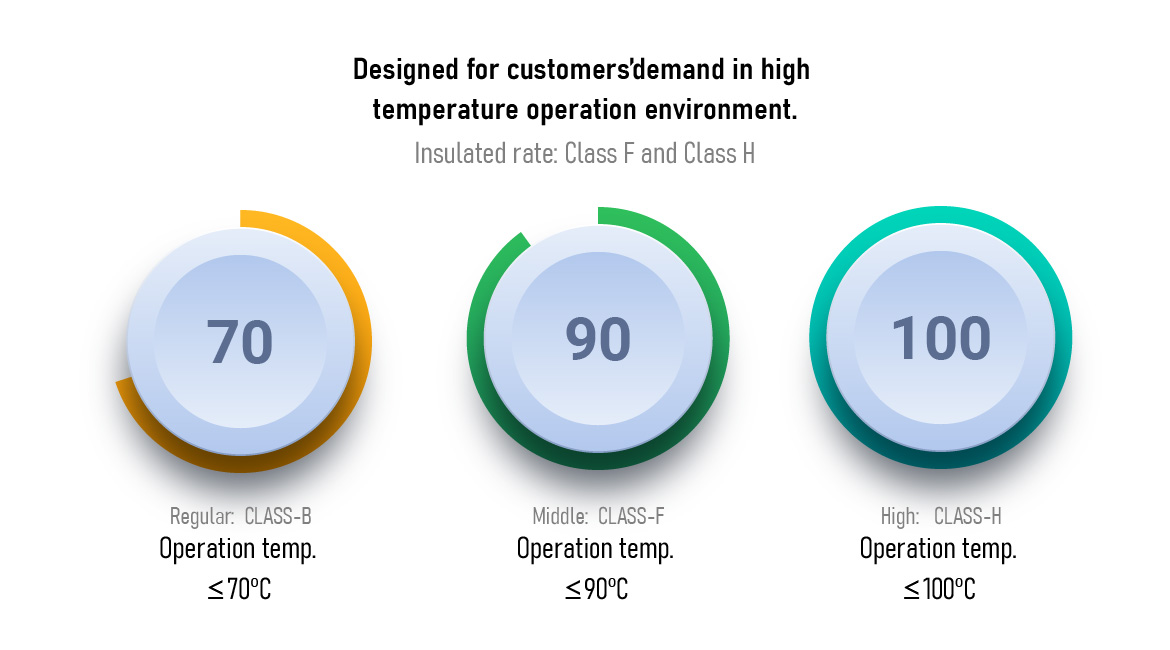

High Temperature Rated Fan
為因應操作環境相對溫度較高的場域，福佑能配合客戶提供不同的耐高溫風扇客製方案
Insluation F class-90 degree Description Size Safety Approval
80AM23BTHF Axial fan, 230Vac, ball bearing 80x80x38mm, metal impeller UL.CUL.TUV.CE
92AM23BTHF Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller TUV.CE
12AM23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller UL.CUL.TUV.CE
12AMR23BTHF Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller, reverse air flow UL.CUL.TUV.CE
15KM23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller TUV.CE
15KMR23BTHF Axial fan, 230Vac, ball bearing 172x150x55mm, metal impeller, reverse air flow TUV.CE
25GCM23BTHF Axial fan, 230Vac, ball bearing Ø254x89mm, metal impeller UL.CUL.TUV.CE



Insulation H Class-100 degree Description Size Safety Approval
92AM23BTHH Axial fan, 230Vac, ball bearing 92.5x92.5x38mm, metal impeller CE
12AM23BTHH Axial fan, 230Vac, ball bearing 120x120x38mm, metal impeller CE
