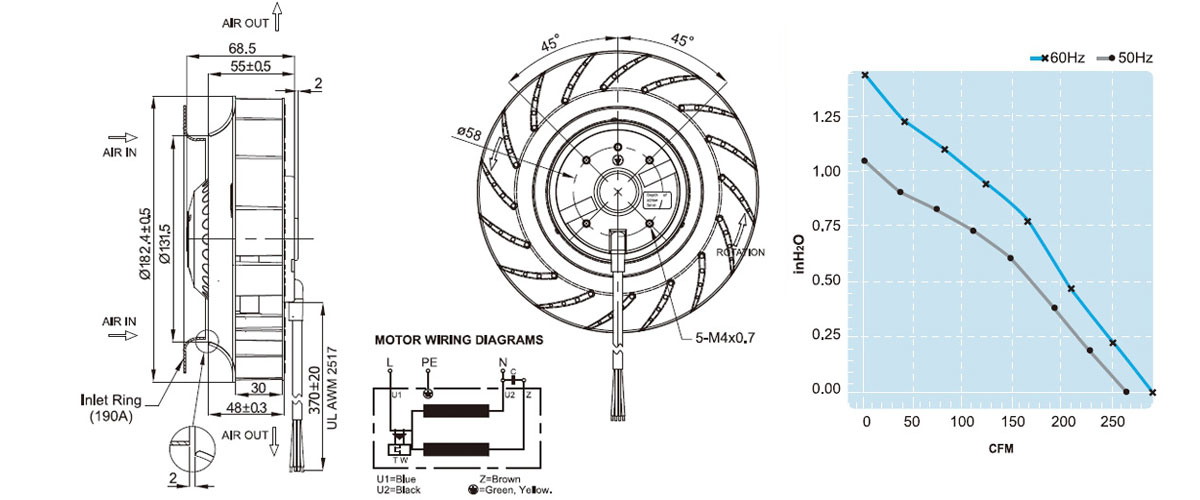

Centrifugal Fan

UF180(55)APA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10


Get Latest Price
UF180(55)APA11H2C2 UF180(55)APA23H2C2A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 63/78 W 63/78 W
Rated Current 0.6/0.7 A 0.3/0.34 A
Locked Current 0.92/0.95 A 0.46/0.48 A
Speed 2550/2800 RPM 2550/2800 RPM
Maximum Air Flow 7.5/8.3 m3/min. 7.5/8.3 m3/min.
Maximum Air Flow 265/290 CFM 265/290 CFM
Maximum Pressure 26/36 mmH2O 26/36 mmH2O
Maximum Pressure 1/1.4 InchH2O 1/1.4 InchH2O
Noise 64/67 dB 64/67 dB
Weights 1.2 kg 1.2 kg
