UF318AAA Series

UF318AAA Series
UF318AAA Series

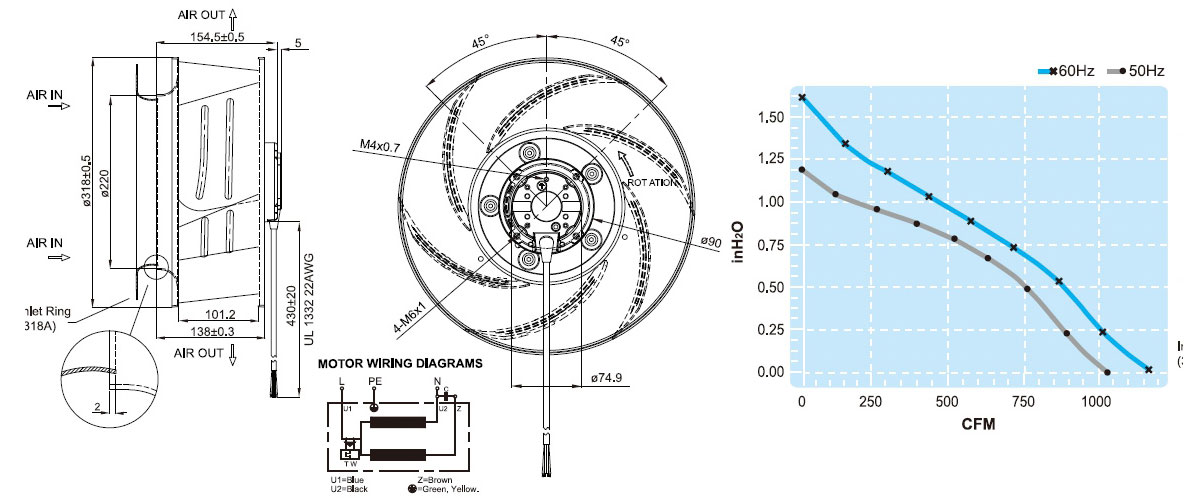

Centrifugal Fan

UF318AAA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 220 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10


Get Latest Price
UF318AAA11H1C4A UF318AAA23H1C4A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 115/155 W 115/155 W
Rated Current 1.1/1.4 A 0.6/0.68 A
Locked Current 2.6/2.4 A 1.43/1.31 A
Speed 1390/1580 RPM 1390/1580 RPM
Maximum Air Flow 28.7/33 m3/min. 28.7/33 m3/min.
Maximum Air Flow 1015/1165 CFM 1015/1165 CFM
Maximum Pressure 30.5/40.6 mmH2O 30.5/40.6 mmH2O
Maximum Pressure 1.2/1.6 InchH2O 1.2/1.6 InchH2O
Noise 63/66 dB 63/66 dB
Weights 3.9 kg 3.9 kg
SAFETY APPROVAL
