UF360AAA Series

UF360AAA Series
UF360AAA Series
Centrifugal Fan

UF360AAA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.

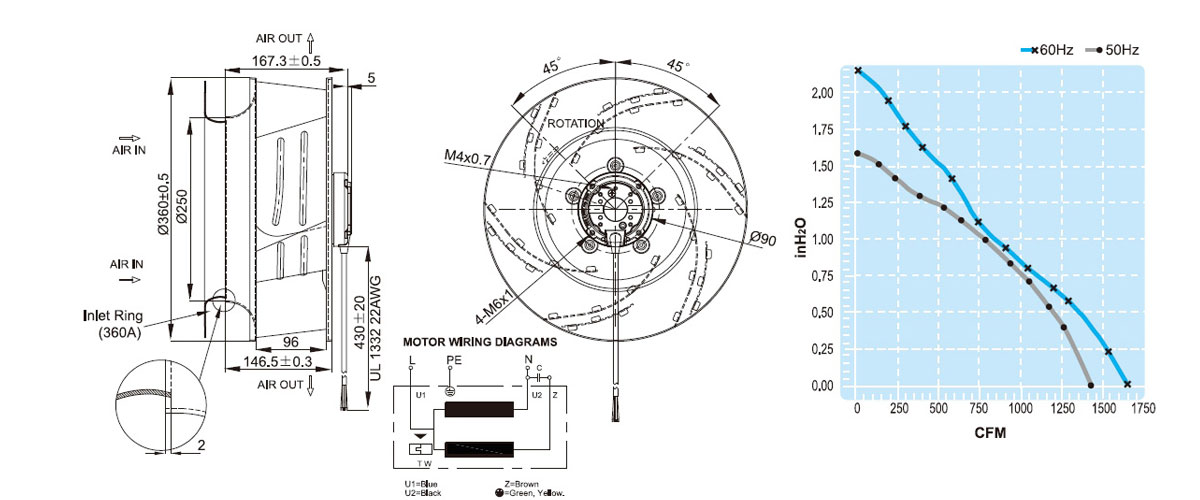

Description of Model No.
UF 190 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10





Get Latest Price
UF360AAA11H1C4A UF360AAA23H1C4A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 190/270 W 190/265 W
Rated Current 1.7/2.3 A 0.9/1.2 A
Locked Current 4.24/4 A 2.12/2 A
Speed 1400/1600 RPM 1400/1600 RPM
Maximum Air Flow 40.5/46.5 m3/min. 40.5/46.5 m3/min.
Maximum Air Flow 1430/1645 CFM 1430/1645 CFM
Maximum Pressure 40/55 mmH2O 40/55 mmH2O
Maximum Pressure 1.6/2.2 InchH2O 1.6/2.2 InchH2O
Noise 66/70 dB 66/70 dB
Weights 5.1 kg 5.1 kg
SAFETY APPROVAL
