Axial Fan

UF12AR Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run
Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL

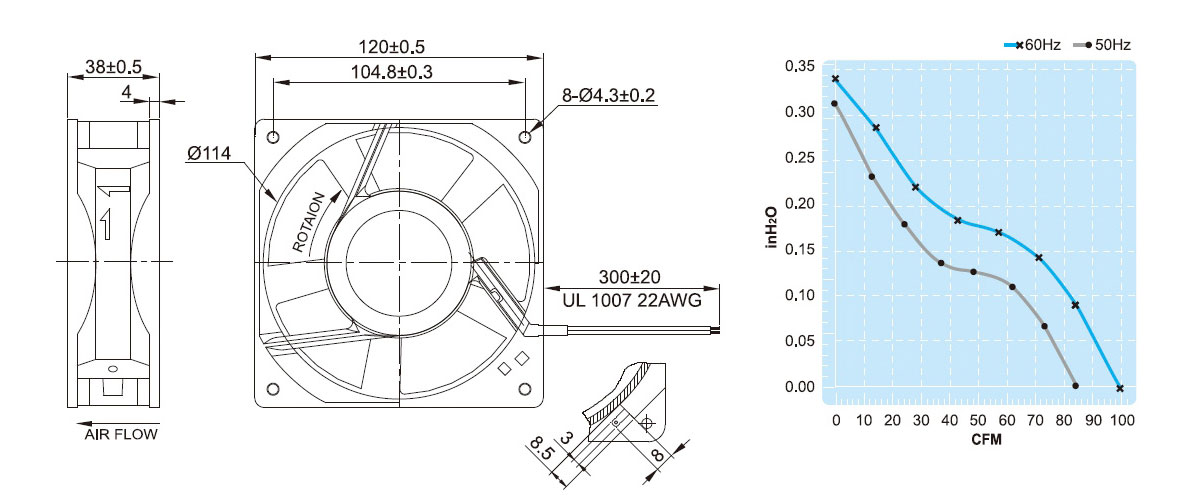

Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price
UF12AR11-H UF12AR23-H
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 13/11 W 17/15 W
Rated Current 0.2/0.19 A 0.1/0.09 A
Locked Current 0.22/0.2 A 0.11/0.1 A
Speed 2700/3100 RPM 2700/3100 RPM
Maximum Air Flow 2.4/2.8 m3/min. 2.4/2.8 m3/min.
Maximum Air Flow 85/99 CFM 85/99 CFM
Maximum Pressure 8/8.5 mmH2O 8/8.5 mmH2O
Maximum Pressure 0.32/0.33 InchH2O 0.32/0.33 InchH2O
Noise 45/47 dB 45/47 dB
Weights 0.53 kg 0.53 kg
SAFETY APPROVAL
