ESG Application: Green Innovation of AC&EC Fans for Cooling in Vending Machines

With the continuous development on the hardware and software nowadays due to the the increasing demand from consumers, the thermal cooling system becomes critical in the vending machines, so does the cooling fan in the cooling system. Under the wave of ESG and few labor, the 24-hour uninterrupted power supply of vending machines is certainly a great help to operators, but the related costs such as electricity bills are also a burden.

As a professional AC fan and EC fan manufacturer, Fulltech Electric Co., Ltd fan products offers customers options with speed control or with thermal switch design, so that vending machines can operate at high temperature, with multiple fans to be started at the same time to achieve rapid cooling and heat dissipation. And when the temperature drops, the redundant fans can be turned off to achieve the effect of energy saving and power saving. The operation is more cost-effective and efficient, which also increases the profit for the operator at the same time.

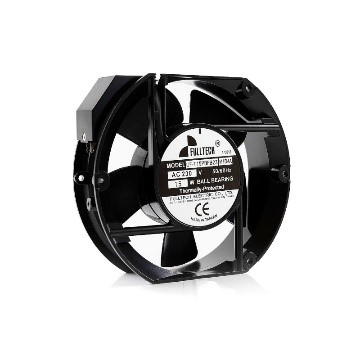

EC fan UF-T15P specifications are as follows, adding PWM (speed control) + RD (warning detection) function s are also available

鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification	UF-T15PBPB0AM1D4A
Size	17215051 mm
Rated Voltage	115~230V
Frequency	50/60 Hz
Input Power	17(115VAC) /17(230VAC) W
Rated Current	0.23(115VAC) 0.135(230VAC) A
Locked Current	0.23(115VAC) 0.14(230VAC) A
Speed	3000 RPM
Maximum Air Flow	6.2 m3/min
Maximum Air Flow	220 CFM
Maximum Pressure	17.8 mmH2O
Maximum Pressure	0.7 InchH2O
Noise	44 dB
Weights	0.7 kg
Certification	UL、TUV、ATEX

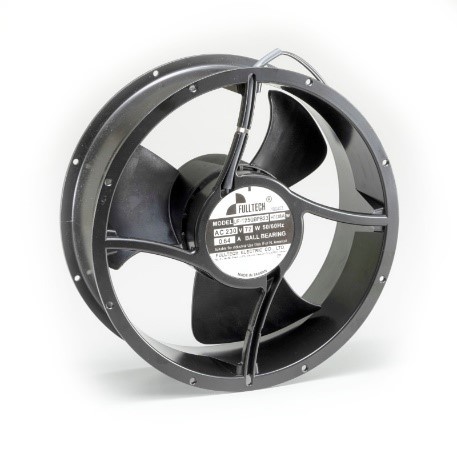

EC fan UF-T25G specifications are as follows, adding PWM (speed control) + RD (warning detection) function s are also available

ESG、Explosion-proof fan、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification	UF-T25GBPB23H1D8A
Size	Ø254*89mm
Rated Voltage	230V
Frequency	50/60 Hz
Input Power	72W
Rated Current	0.64 A
Locked Current	0.15A
Speed	2750 RPM
Maximum Air Flow	23.5 m3/min
Maximum Air Flow	830 CFM
Maximum Pressure	30.5 mmH2O
Maximum Pressure	1.20 InchH2O
Noise	70 dB
Weights	2.09 kg
Certification	UL、TUV、ATEX

AC fan UF-300BNA specifications are as follows,

ESG、Explosion-proof fan、鄧白氏、D&B、 ac fan、ec fan、axial fan、centrifugal fan、Ventilation、Compact Fan、Ventilador compacto、ventilator de caz、Kompaktný ventilator、Kompaktowy wentylator、Ventiladores、Microventilador、Ventilátory EC、AC-Lüfter、Wentylatory AC、Axiálny ventilator、axiálnych ventilátorov、sunon、sanyo denki、EBM、ORIX

Specification	UF-300BNA23H1C2A
Size	Ø398*98.3mm
Rated Voltage	230V
Frequency	50/60 Hz
Input Power	150/200W
Rated Current	0.9/1.2 A
Locked Current	1.6/1.56A
Speed	2650/2950 RPM
Maximum Air Flow	40.6/45.7 m3/min
Maximum Air Flow	1435/1615 CFM
Maximum Pressure	31/29 mmH2O
Maximum Pressure	1.2/1.1 InchH2O
Noise	75/78 dB
Weights	4.5 kg
Certification	UL、TUV

In addition, Fulltech Electric Co., Ltd. AC or EC fan products are also with the the advantages of efficient heat dissipation, low noise, and high reliability, which can increase the life and durability of the equipment.

We welcome all enterprises, whether it is an existing product replacement specification or a new development project, if you are interested, please contact us for further discussion!
